Auto Spiral Culvert Pipe Making Machine with 9 Forming Stations used in water conservancy project

Place of Origin : China

Brand Name : Friendship

Certification : ISO

MOQ : One set

Price : as per client requirements

Packaging Details : plastic film or plywood box

Delivery Time : 100days

Payment Terms : T/T or LC

Supply Ability : 100 sets per months

Model Number : FSM-161

MATERIAL : GI

THICKNESS : 1.0-2.5MM

Diameter : 1000mm-5000mm

speed : 25m/min

feeding width : 155mm

cutting : plasma cutting

Joint form : The spiral seam

Contact Now

Auto Spiral Culvert Pipe Making Machine with 9 Forming Stations

used in water conservancy project

Composed devices

  1. Hydraulic coil car
  2. Hydraulic decoiler
  3. Hydraulic press and guide and pinch device
  4. hydraulic head-cutting machine
  5. guide device
  6. roller table
  7. scrap winder
  8. hydraulic damping and pre-dividing and press device
  9. recoiler
  10. hydraulic unload car
  11. electric control system
  12. hydraulic system

Technical parameters:

Diameter range 1000-5000mm
Material cold rolled sheet,thickness 2.0-3.0mm,width 300mm
Decolier Automatic load material ,max load 5000kgs
Seam Type Locked outside the pipe
Wave siez 68*13,two waves between the seams
Feeding speed 5-20m/min
Cutting Type Auto plasma cutting
Driven System Electric,Hydraulic
Total Weight 10ton
Outside size

Main machine 4.5m×1.6m×1.4m

Decolier:2.8m×1.2m×2.0m

Out table:3.2m×2.1m×1.2m
Total Power 44.5kw
Electrical source 380v/50hz/3ph
Control system PLC

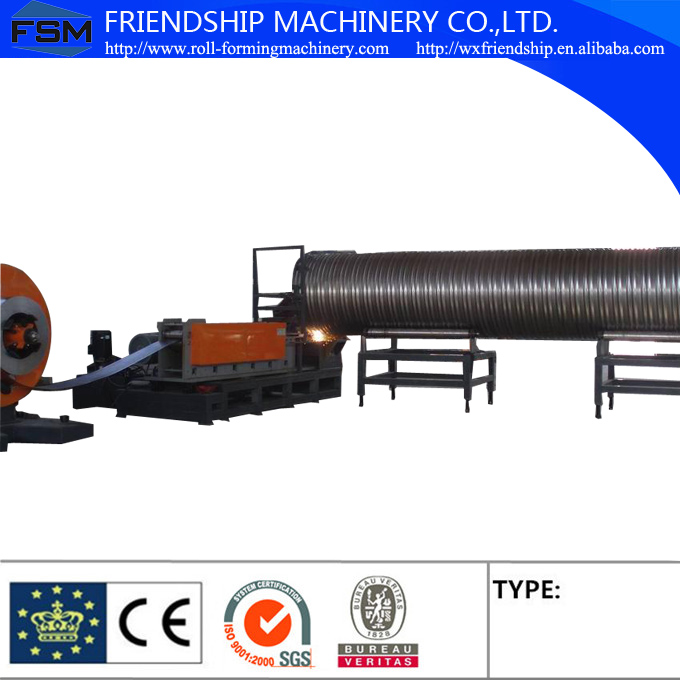

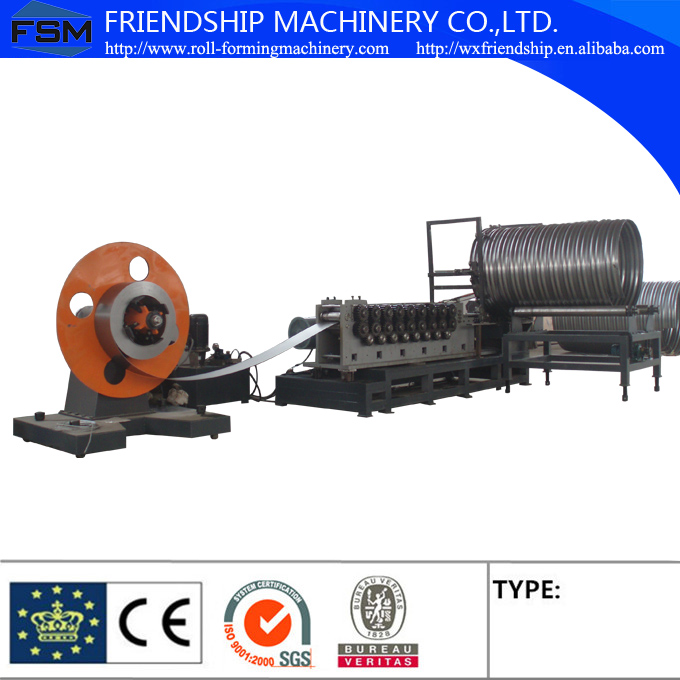

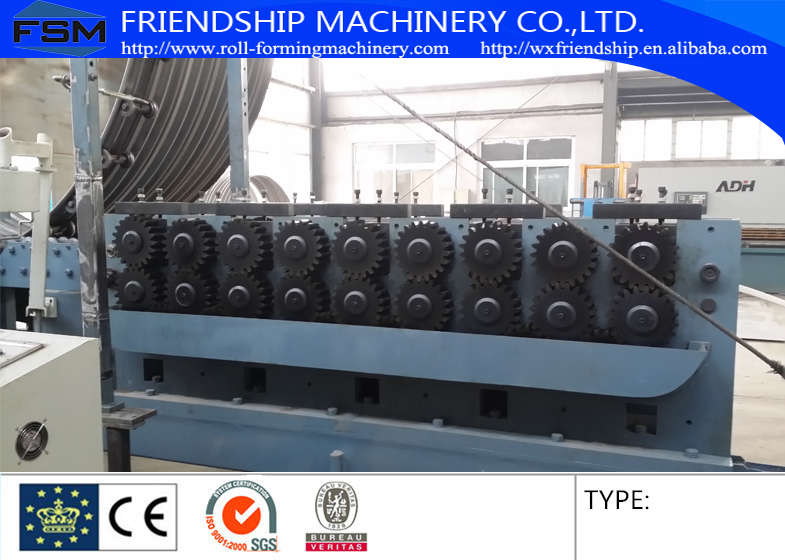

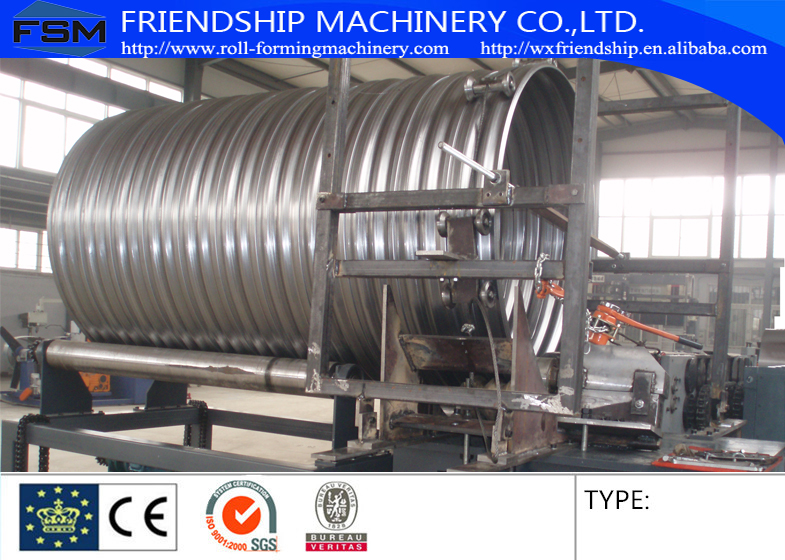

Machine picture:

Auto Spiral Culvert Pipe Making Machine with 9 Forming Stations used in water conservancy project

Auto Spiral Culvert Pipe Making Machine with 9 Forming Stations used in water conservancy projectAuto Spiral Culvert Pipe Making Machine with 9 Forming Stations used in water conservancy project

Auto Spiral Culvert Pipe Making Machine with 9 Forming Stations used in water conservancy project
