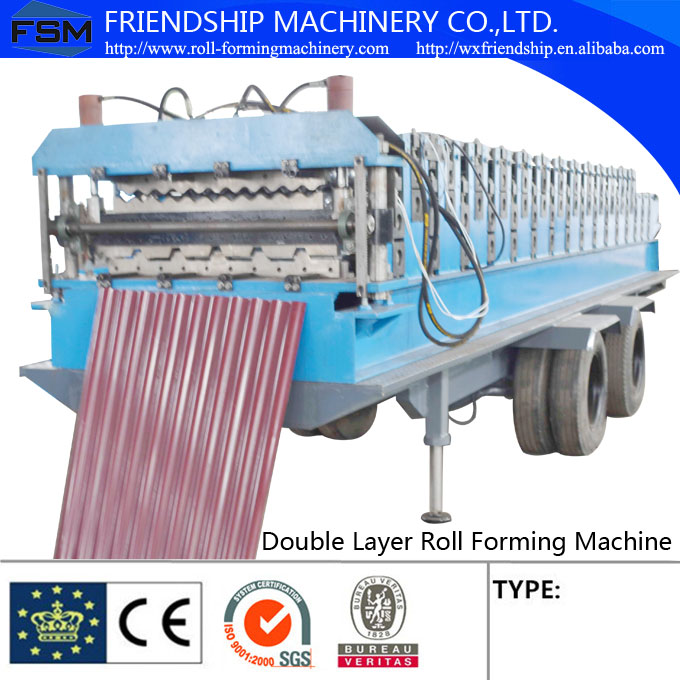

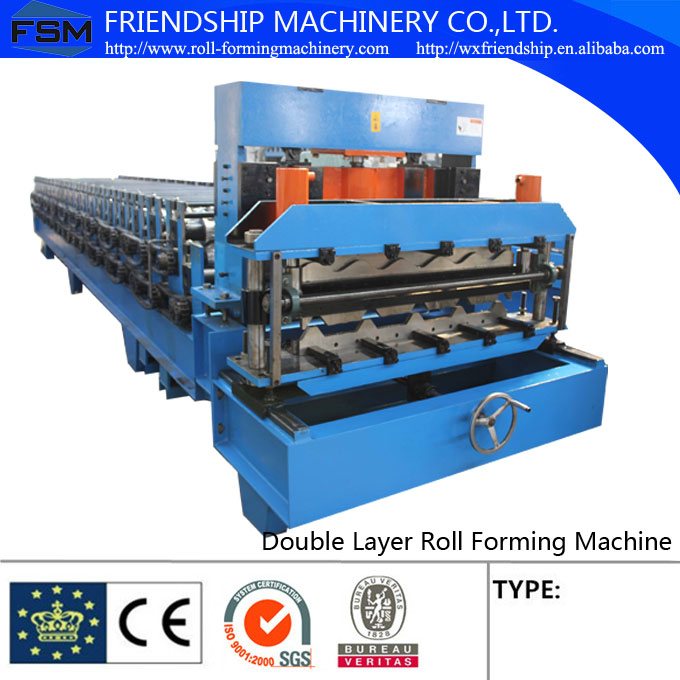

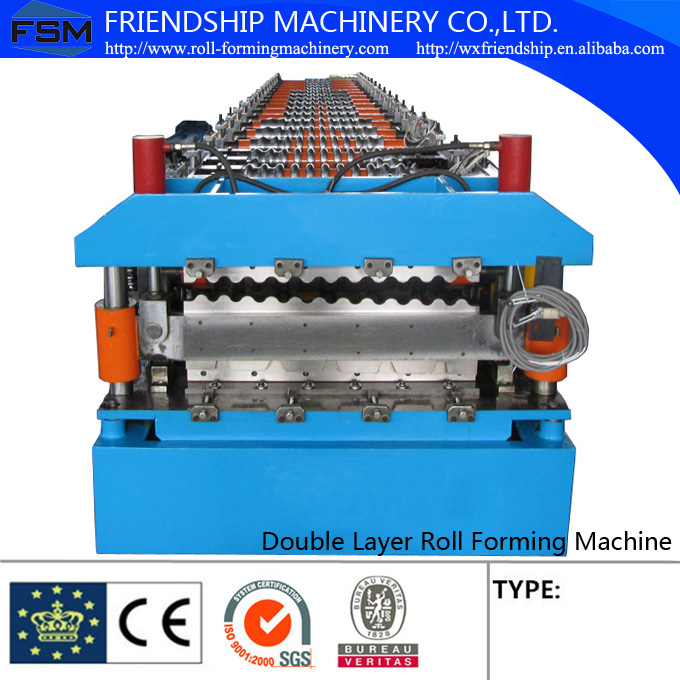

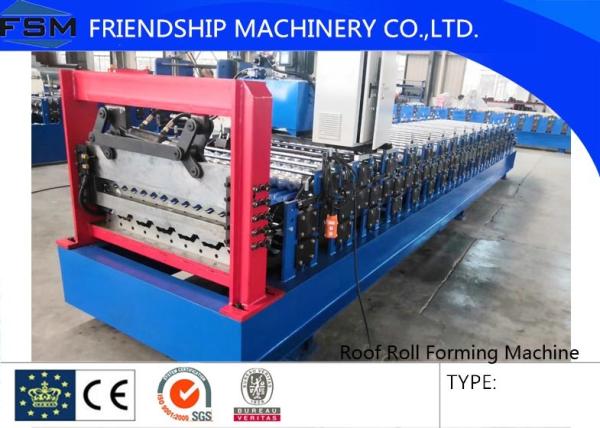

2 In 1 Steel Color Plc Double Layer Roll Forming Machine

Product Categories

FRIENDSHIP MACHINERY CO,LTD

Contact Now

Name: 2 In 1 Steel Color Plc Double Layer Roll Forming Machine
Brand: Friendship
Price: 1 USD

Brand Name : Friendship

Certification : ISO

Place of Origin : China

MOQ : One set

Price : as per client requirements

Payment Terms : T/T or LC, D/A

Supply Ability : 100 sets per month

Delivery Time : 60days

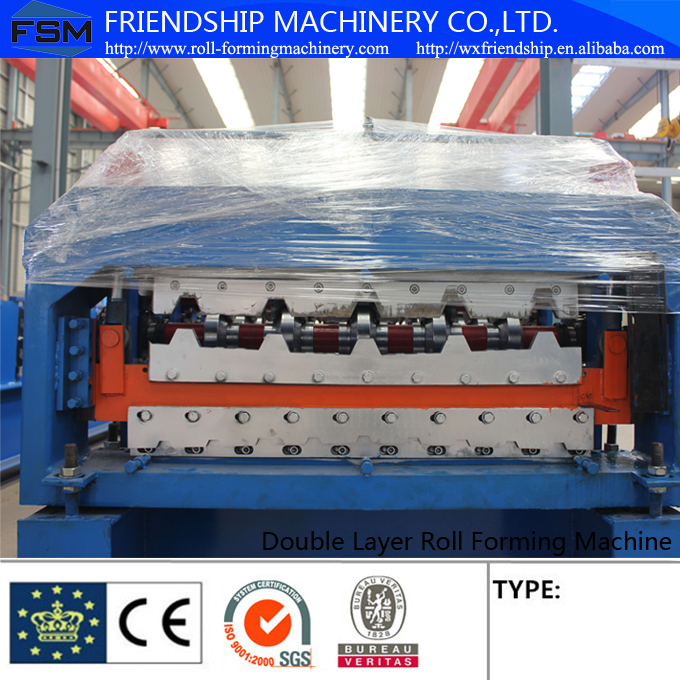

Packaging Details : plastic film or plywood case

PLC : Panasonic,Automatic

Inner diameter : 498-508mm

Material : color steel, aluminum coil

Power and strength : 3.5KW, 16Mpa

Coil Widht : 1000

Coil Thickness : 0.4-0.6mm

Contact Now

2 in 1 Doulbe Layer Steel Color Roof Panel Roll Forming Machine One Machine Can Make Two Kinds Roofs

Technical proposal

Name	Item	Specification
Coil requested	Material	color steel, aluminum coil
	Thickness	color steel:0.4-0.6MM , aluminum coil:0.3-0.7mm
	Tensile strength	235Mpa
	Coil width	1000mm
Decoiler(1 unit)	Type and weight capacity	Manual decoiler, 5T
	Inner diameter	498-508mm
	Outer diameter	Max:1800mm
Embosser(1 unit or not need)	motor
	Weight	this kind of machine no need this part
	Size
Rollforming machine (1 unit)	Rolling speed	15m/min
	Motor	7.5KW*2pics, 3phase, 60Hz, 380V

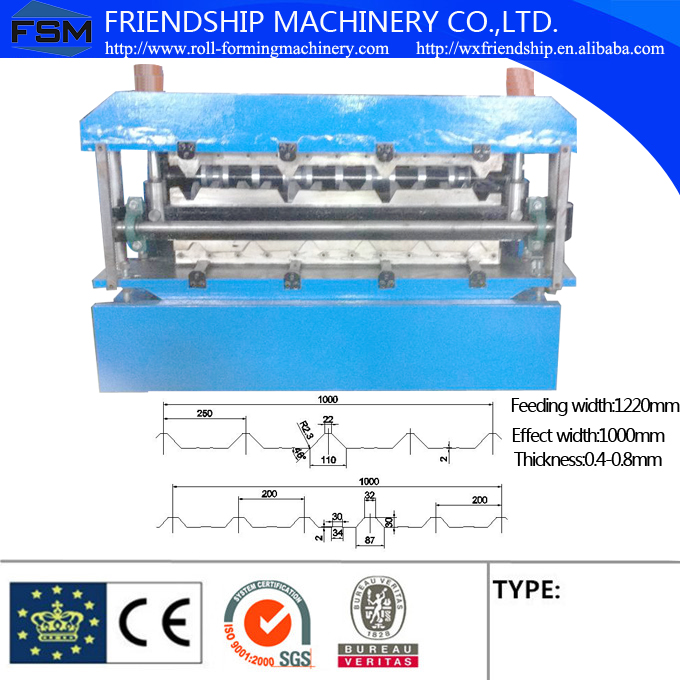

	Rolling step	up:19 down: 21 according drawing
	Driving system	Chain transmission
	Structure of machine body	Entire wall steel structure
	Material of roller	45# steel, chromed thickness0.05mm
	Diameter of shaft	80mm
	Dimession	Abt.13m1.8m1.6m
	Weight	Abt.10T

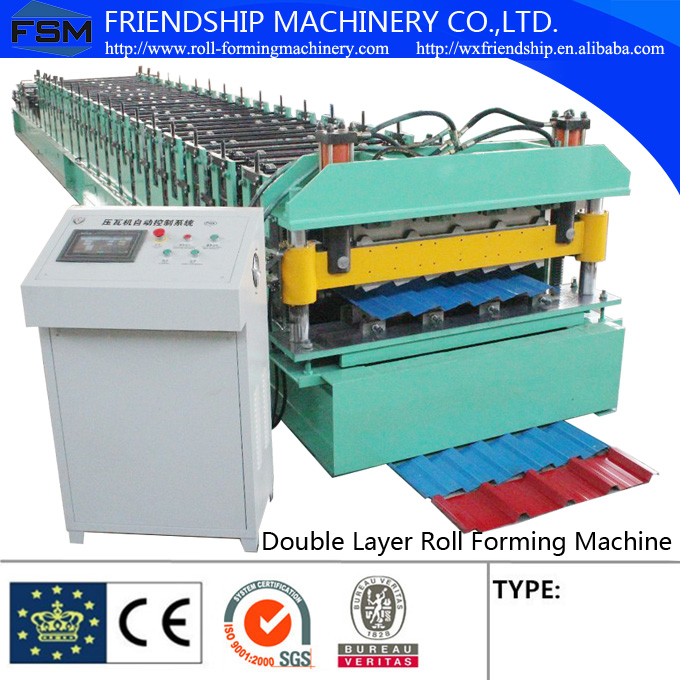

Electric control cabinet(1 unit)	Main component	PLC, frequency convertor, touching screen, encoder
	Cutting and length measurement	Automatic stop to cut, encoder
	Brand	From Japan, can be chosen by client
Hydraulic station (1 unit)	Power and strength	3.5KW, 16Mpa
Cutting machine(1 unit)	Material of blade	GCr12 mov steel, heatment and hardness up to HRC58-62
Cutting machine(1 unit)	Cutting type	Hydraulic cutting
Run out table(1 unit with 4pics)	Size	1.2m0.7m1.2M

Processing flow:

Manual decoiler----embossing----feeding&guiding----rollforming----hydraulic cutting--- run out table

Application:

The roof panel used as the roofing of factory, garage,warehouse, reliable and safety installation is easy to realize.
Good toughness: with super toughness, Tere is no necessary to do any treatment amontg the nail hole, it is sealing and can prevent leaking water.
Long life: life ≥ 25 years, is an alternative to steel tile.
Corrosion resistance: strong acid, alkali, salt, anti-static, anti-vapor corrosion, etc.
Noise performance: noise performance is good, away from the noise.
The appearance of the shape: colorful. color, length can be arbitrarily chosen
